On January 19, 2026, a long-standing client in the Philippines once again commissioned us to custom-manufacture a 6-meter-long metal chain plate conveyor belt. We sincerely apologize for the delay in shipment—which was postponed by a few days due to the proximity of the Lunar New Year holiday—resulting in the goods not being dispatched until March 25.
The specifications are as follows:
Length: 6415mm (6.415 meters)
Number of Chain Plate: 100 pieces
Overall Width: 865.35mm
Chain Pitch: 31.75mm
Roller Diameter: 19.05mm
Rod Diameter: 5mm
Link Thickness: 2mm
Link Height: 15mm
Width Betwenn Inter Plates: 9.53mm
Material: 304 Stainless Steel

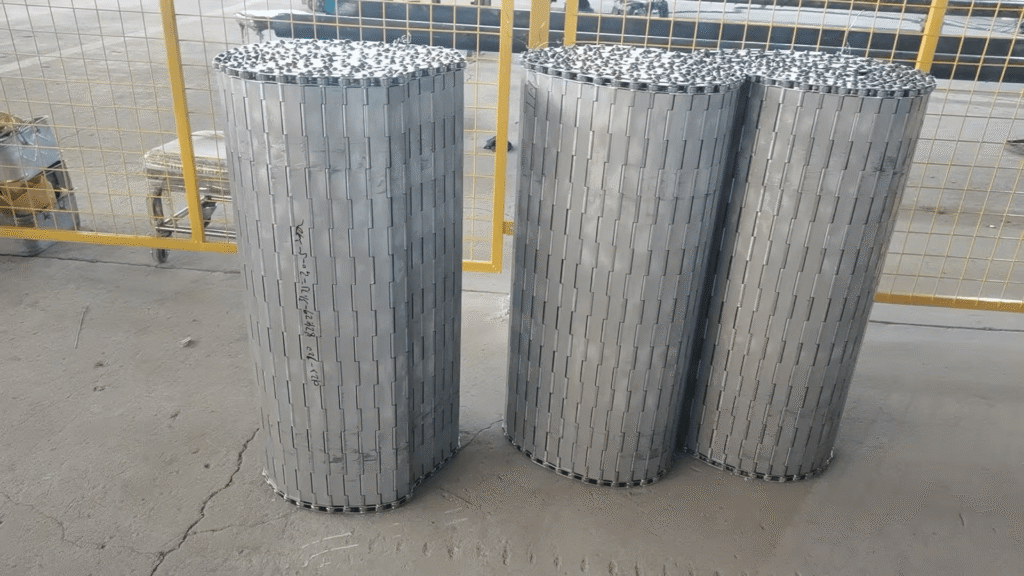

Product Images:
Package Dimensions:
Tare Weight: 30.5 kg
Net Weight: 457.5 kg
Gross Weight: 488 kg
Wooden Crate Dimensions: Length 1150, Width 420, Height 990
Shipment Photos:
