Rod Network Conveyor Belt specifications are as follows：
Width (A): 419.1 mm
Pitch (C): 12 mm
Wire Diameter (D): 1.83 mm
Edge Type (E): Single Loop Edge (SLE)
Single Loop Edge Width (F): 7.14 mm
Double Loop Edge Width (G): n/a
Number of Spaces (H): 5
First Space Width (I): 80 mm
Center Space Width(s) (J): 84.8 mm
Material: SS 304
Metal Sprocket specifications：
Outer Diameter: 76.2 mm
Root Diameter: 68.58 mm
Number of Teeth: 17 Teeth
Material: SS 304
Package Dimensions:
Tare Weight: 15.2 kg
Net Weight: 103.8 kg
Gross Weight: 119 kg
Wooden Crate Dimensions: Length 810, Width 325, Height 670

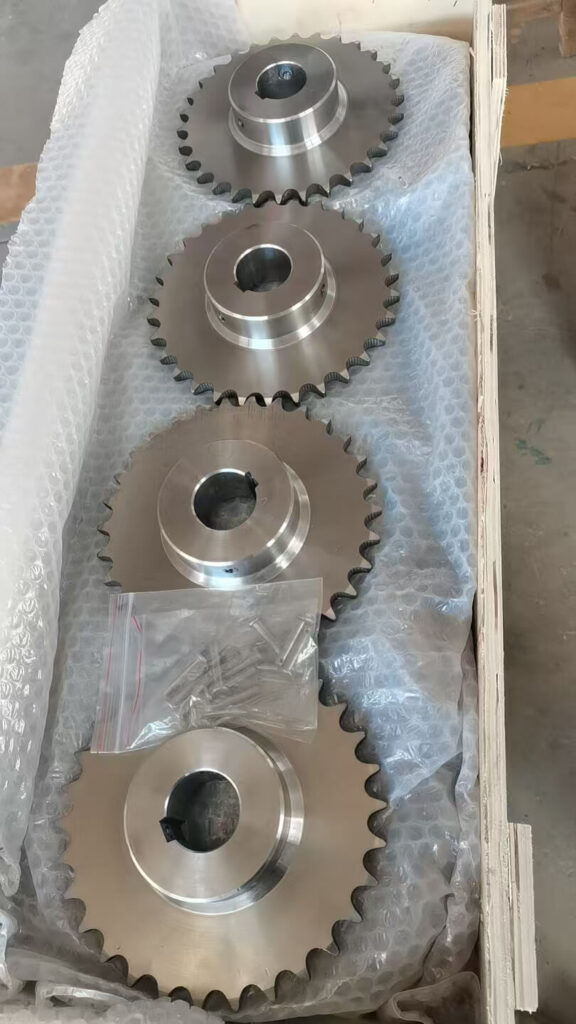

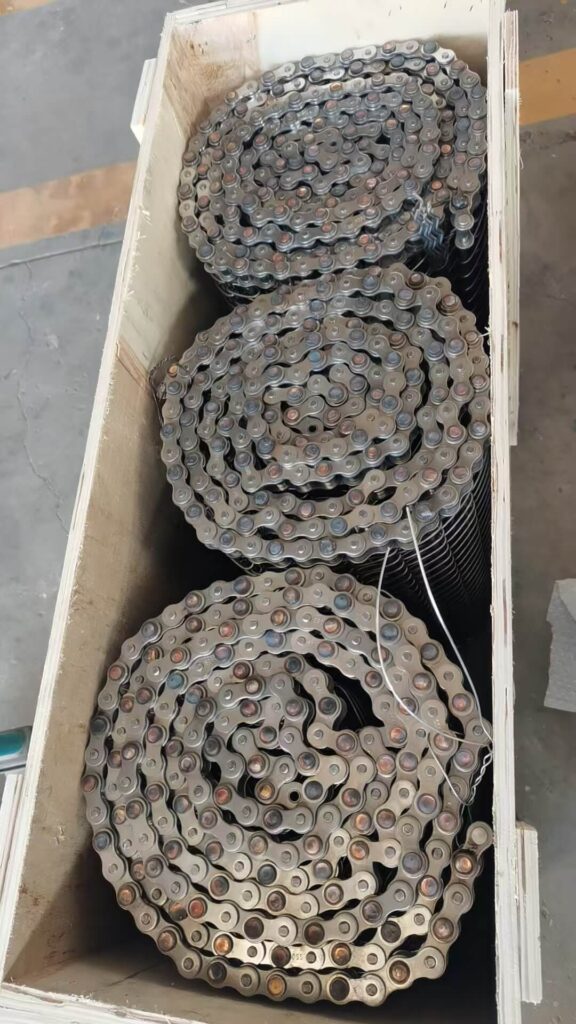

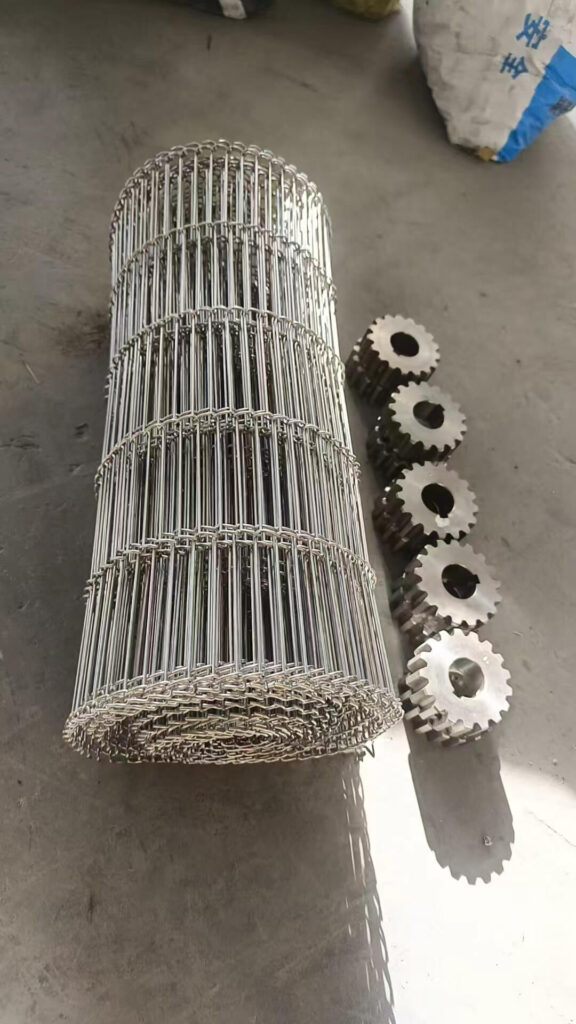

Shipping photos：
