Compound Weave Conveyor Belt

Compound weave belt is a variation of balanced weave belt. Right-hand spiral and left-hand spiral weaves form a very dense and smooth belt with straight rods and some crimped rods. The belt is ideal for conveying small products due to its high-density mesh, such as nuts, bolts, screws, nails, cookies, chemical granules, etc.

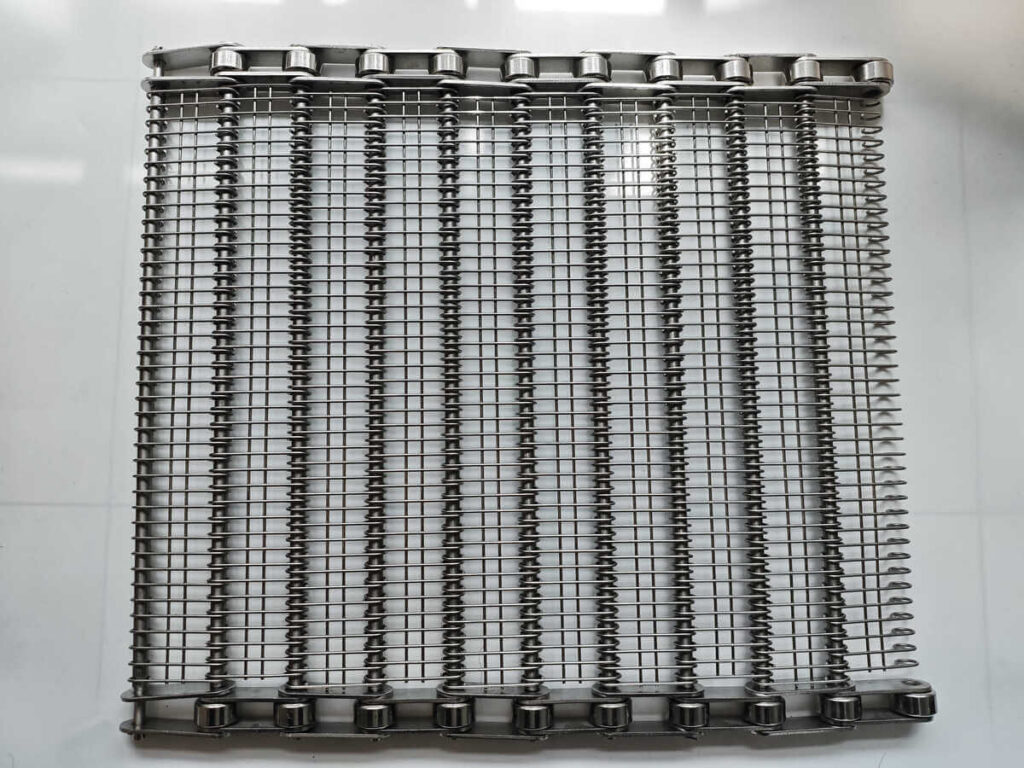

Detailed images：

Features：

• Smooth surface, dense weave wire mesh belt.
• Excellent for conveying very light or small products, as well as unstable or top-heavy items.
• Allowable tension is high, enabling the transport of heavy loads.
• The compound balanced belt has high compressive strength and can be used for processing under pressure.

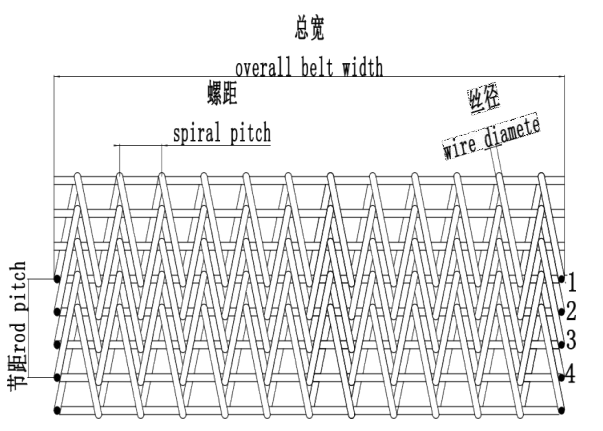

Required Parameters for Customization：

Overall belt width

Belt width refers to the overall width dimension of a herringbone mesh belt, measured from one edge to the other. This parameter determines the effective conveying range of the mesh belt.

Spiral pitch

Pitch refers to the spacing between one V-shape and the next. A larger pitch indicates a higher open area, superior ventilation, and suitability for conveying large-sized products.

Wire diameter

Wire diameter refers to the diameter of the individual metal wires that make up a herringbone conveyor belt. Generally speaking, the thicker the wire diameter, the greater the load-bearing capacity and the higher the wear resistance. Conversely, a smaller wire diameter is suitable for conveying lighter products and results in a higher open area ratio. The appropriate wire diameter should be determined based on the specific products being conveyed.

Rod pitch

Pitch refers to the center-to-center distance between two adjacent transverse connecting rods (cross rods) of a herringbone conveyor belt, measured in the direction of conveyance. Typically, the pitch corresponds to the dimensions of the sprocket.

Common Technical Parameters：
