On March 15, 2026, a client in Vietnam contacted us to commission a custom 100-meter metal conveyor belt. After 18 days of dedicated effort, our factory successfully completed production; the order has now been officially packed and shipped.
Product Dimensions:
Total Width: 900 mm
Chain Pitch: 31.75 mm
Wire Diameter: 1.2 mm
Spiral Pitch: 8 mm
Support Rod Diameter: 10 mm
Support Rod diameter: 6 mm
Support Rod Pitch: 63.5 mm
Material: 304 Stainless Steel

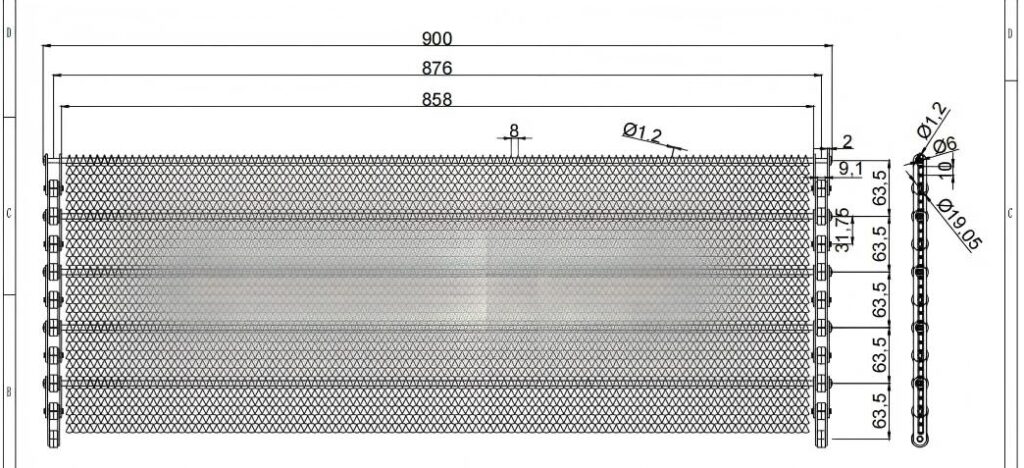

Drawing:
Packaging Dimensions:
Tare Weight: 104 kg
Net Weight: 891 kg
Gross Weight: 995 kg
Wooden Crates:
L 1310 × W 1000 × H 1025 mm (1 Unit)
L 1000 × W 1000 × H 1025 mm (1 Unit)

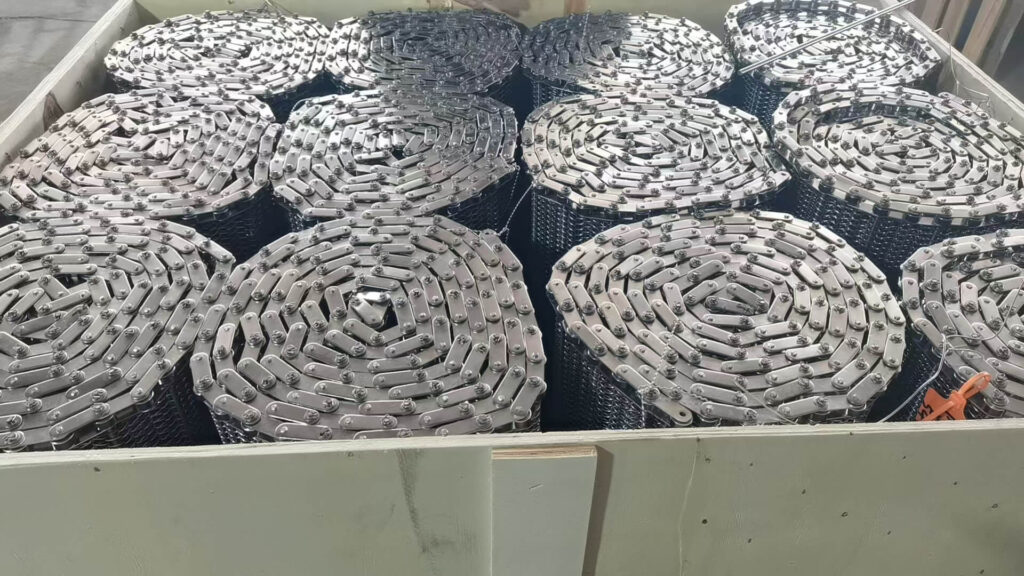

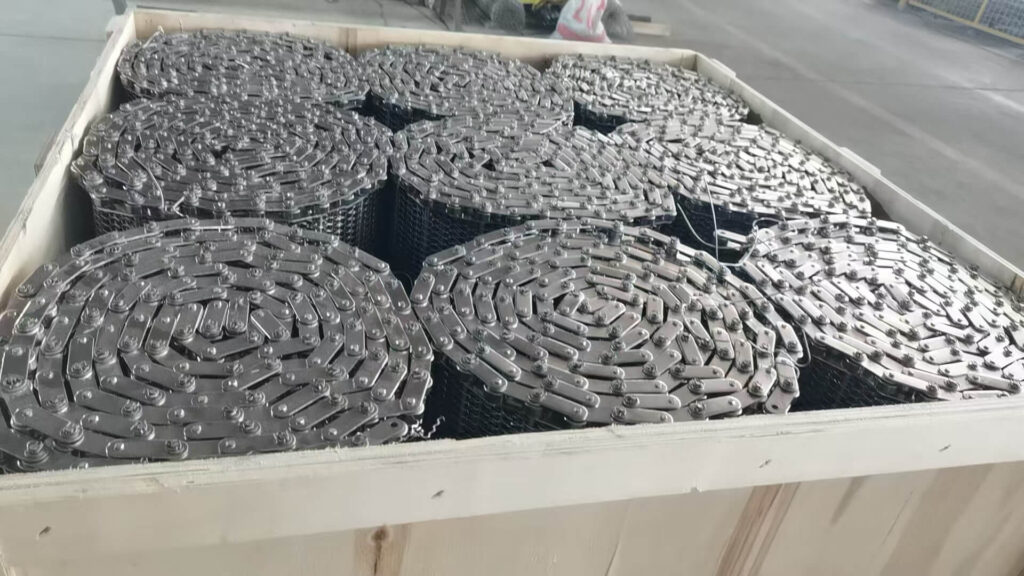

Product Packaging Photos:
