Chain Mesh Conveyor Belt

Chain belt is driven by sprocket, running smoothly and the force on the mesh surface is small.Smooth mesh belt surface and solid cross rod support, which can bear high load and tensile strength.Chain-driven belts are driven by chains, supporting shafts, and gears. No friction required. It can be transported in straight lines, slopes, heavy loads, and long distances.The styles of mesh belts are diverse, and many mesh belts can be assembled into chain nets, including balanced weave belt and conventional weave belt, which are the most common styles.Chain mesh belt support rods can use rods, angle steel, tube, etc.

Features：

• Chain mesh is assembled and processed by wire mesh belts, supporting rods, and chains.
• Select the mesh belt style, wire diameter, and pitch based on factors such as the type, shape, size, and weight of the transported products.
• Select the appropriate chain model and support shaft specifications according to the width, length, operating speed, and mechanical configuration of the mesh belt.
• Working temperature range: -55°C to 1150°C.
• Side baffles can be added to the edges of the mesh belt, and cleats can be installed on the belt surface as needed.

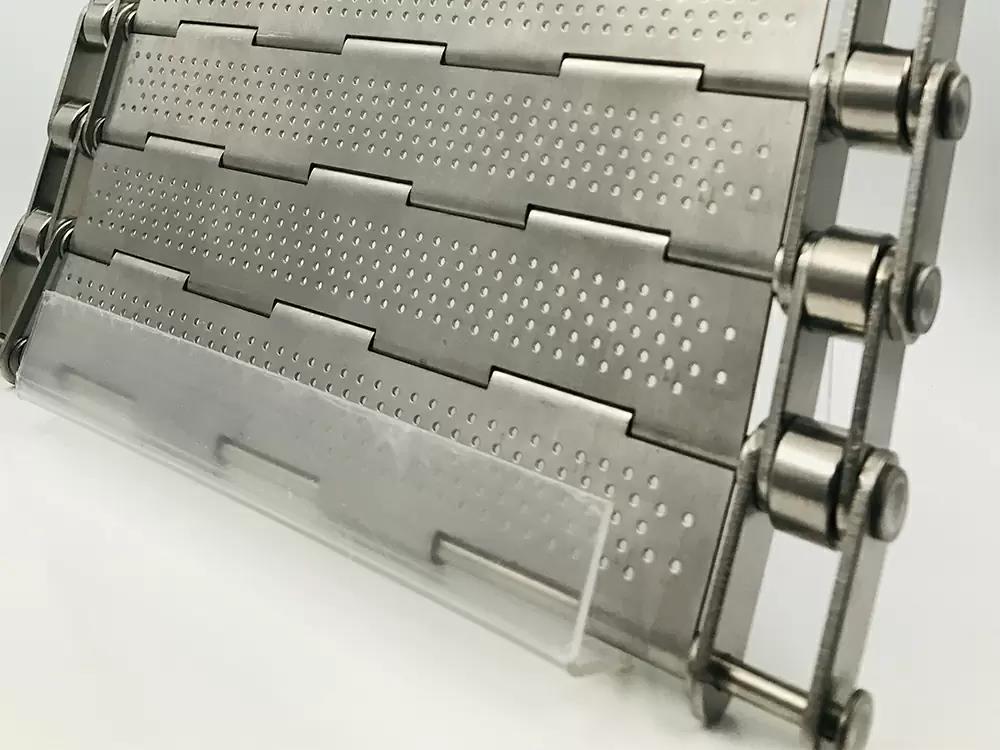

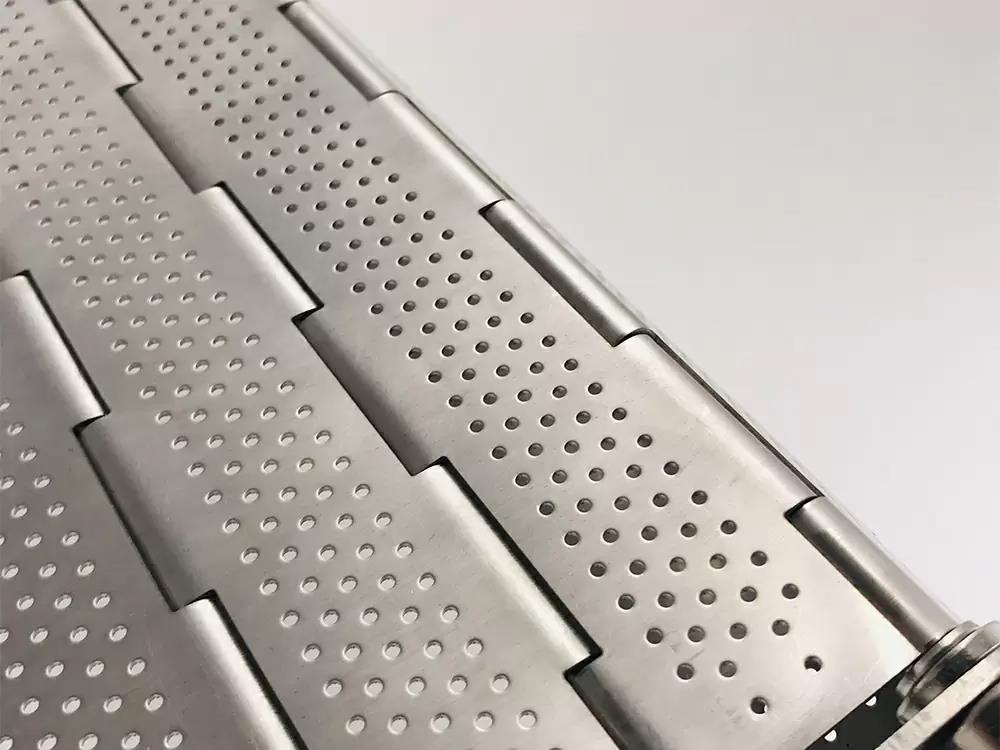

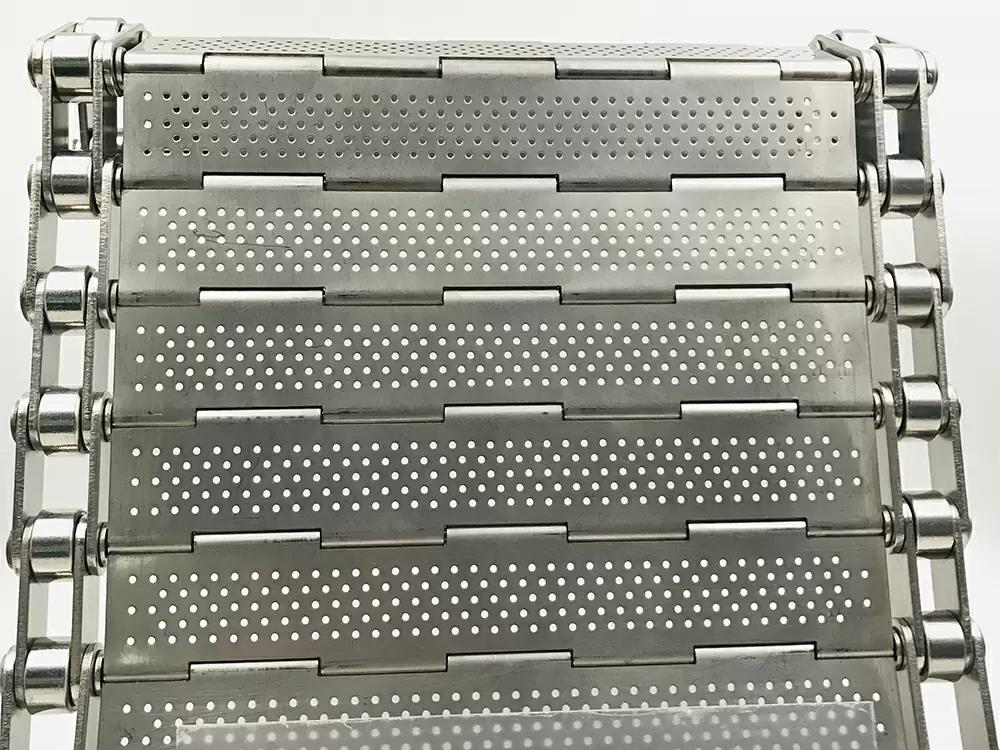

Detailed images：

Required Parameters for Customization：

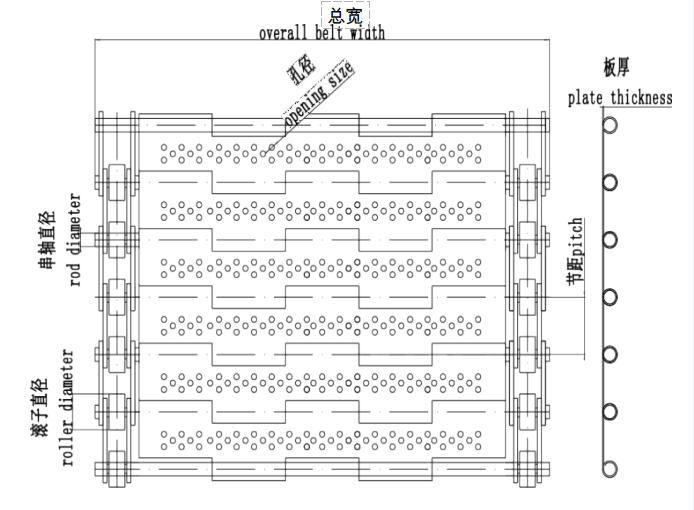

Drawing：

Parameter：
